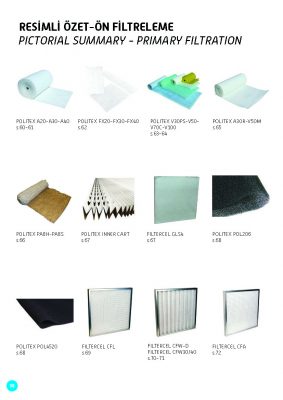

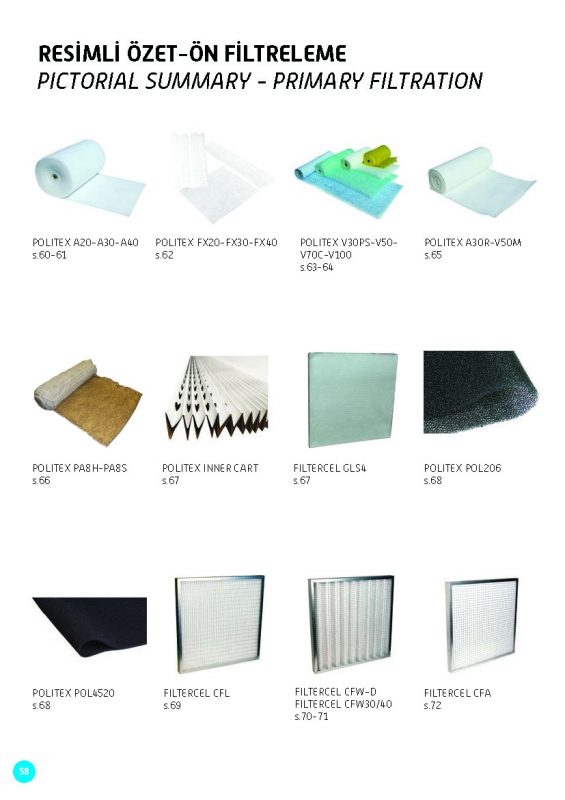

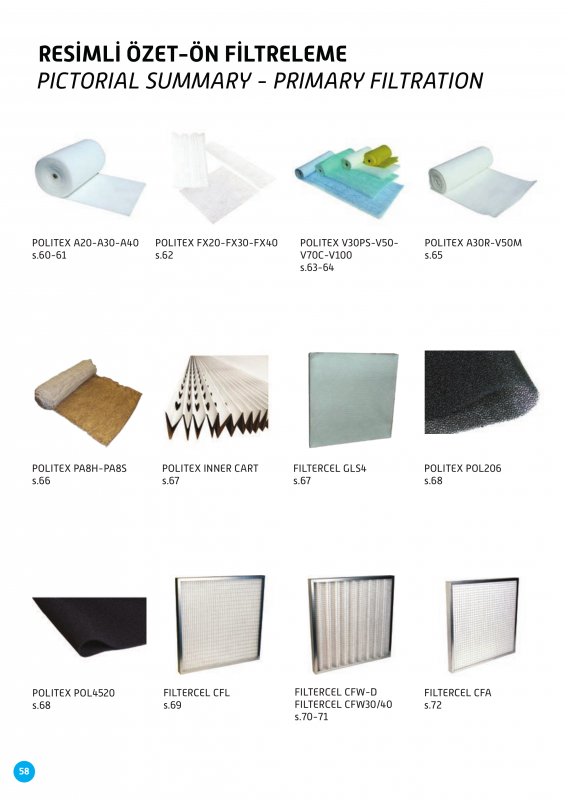

POLITEX A20–A30–A40 | Primary Filtration POLITEX A30R–V50M | Primary Filtration POLITEX PA8H–PA8S | Primary Filtration POLITEX INNER CART | Primary Filtration POLITEX POL206 | Primary Filtration POLITEX POL4520 | Primary Filtration POLITEX FX20–FX30–FX40 | Primary Filtration POLITEX V30PS–V50–V70C–V100 | Primary Filtration FILTERCEL CFL | Primary Filtration FILTERCEL CFW-D | Primary Filtration FILTERCEL CFW30/40 | Primary Filtration FILTERCEL CFA | Primary Filtration FILTERCEL GLS4 | Primary Filtration PICTORIAL SUMMARY – PRIMARY FILTRATION

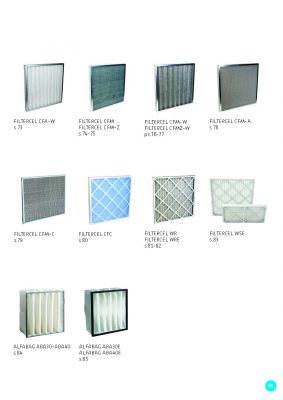

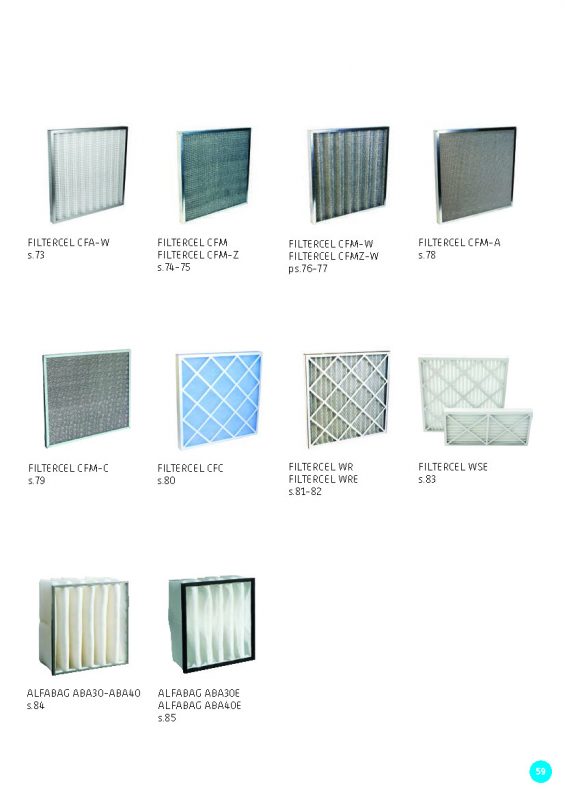

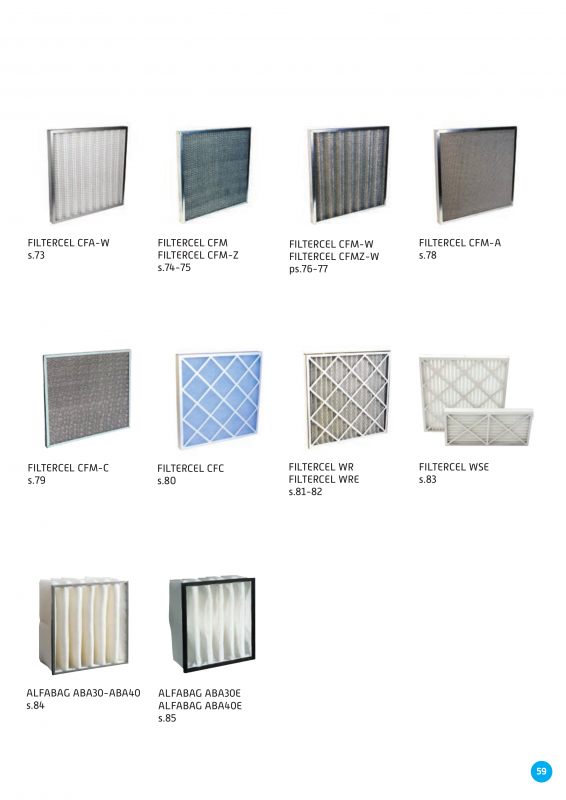

FILTERCEL CFA-W | Primary Filtration FILTERCEL CFM | Primary Filtration FILTERCEL CFM-Z | Primary Filtration FILTERCEL CFM-A | Primary Filtration FILTERCEL CFM-W | Primary Filtration FILTERCEL CFMZ-W | Primary Filtration FILTERCEL CFM-C | Primary Filtration FILTERCEL CFC | Primary Filtration FILTERCEL WR | Primary Filtration FILTERCEL WRE | Primary Filtration FILTERCEL WSE | Primary Filtration ALFABAG ABA30–ABA40 | Primary Filtration ALFABAG ABA30E | Primary Filtration ALFABAG ABA40E | Primary Filtration

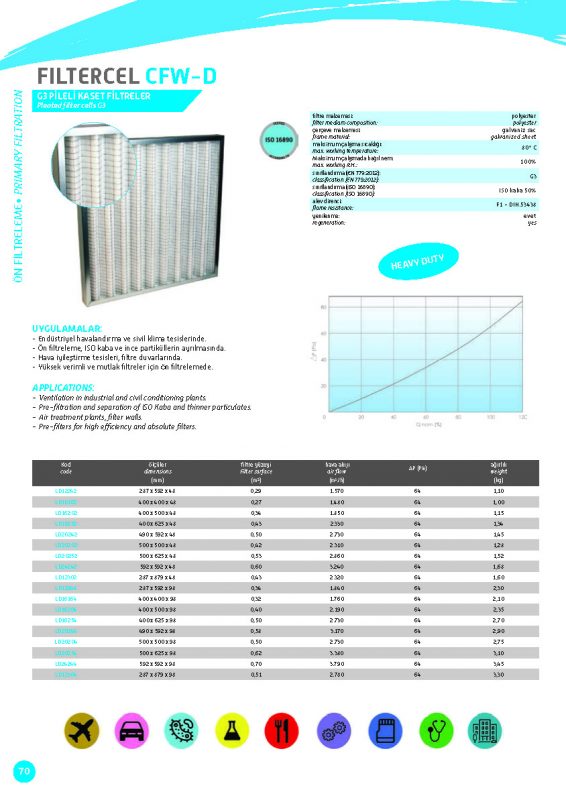

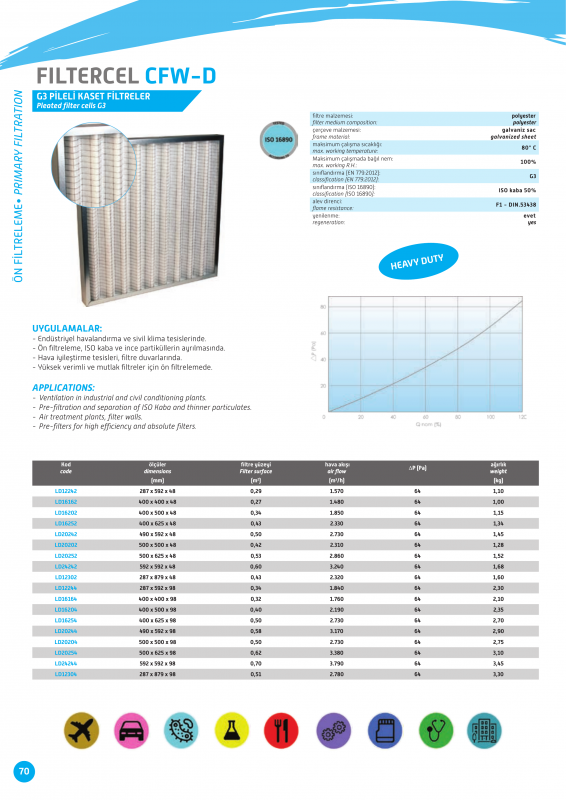

FILTERCEL CFW-D – G3 Pleated Filter Codes: LD12242, LD16162, LD16202, LD16252, LD20242, LD20202, LD20252, LD24242, LD12302, LD12244, LD16164, LD16204, LD16254, LD20244, LD20204, LD20254, LD24244, LD12304 Dimensions: 287×592×48 – 592×592×48 mm | 287×592×98 – 592×592×98 mm Air Flow: 1,480–3,790 m³/h Filter Surface: 0.27–0.70 m² Initial Pressure Drop: 64 Pa Weight: 1.00–3.45 kg G3 | ISO Coarse 50% | Polyester | Galvanized Sheet Frame Primary Filtration | Pre-Filter | Heavy Duty | Regenerable

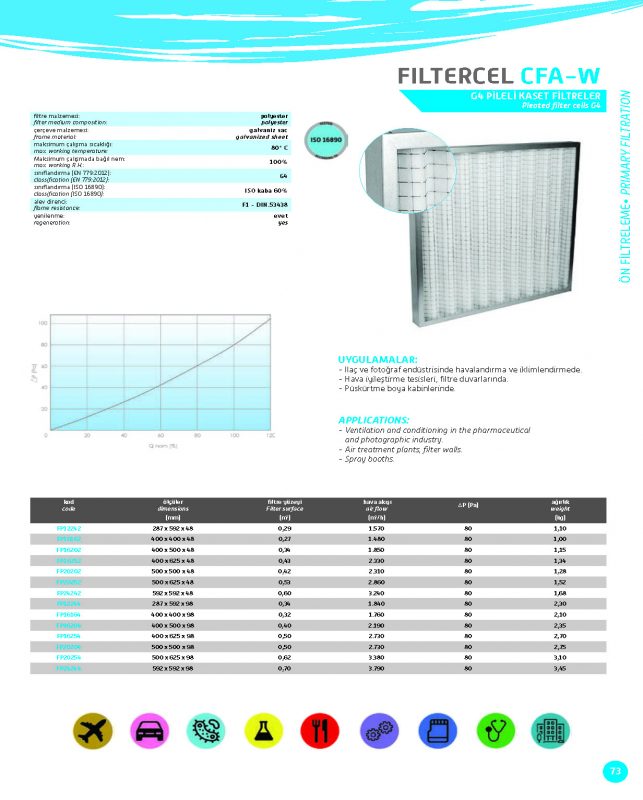

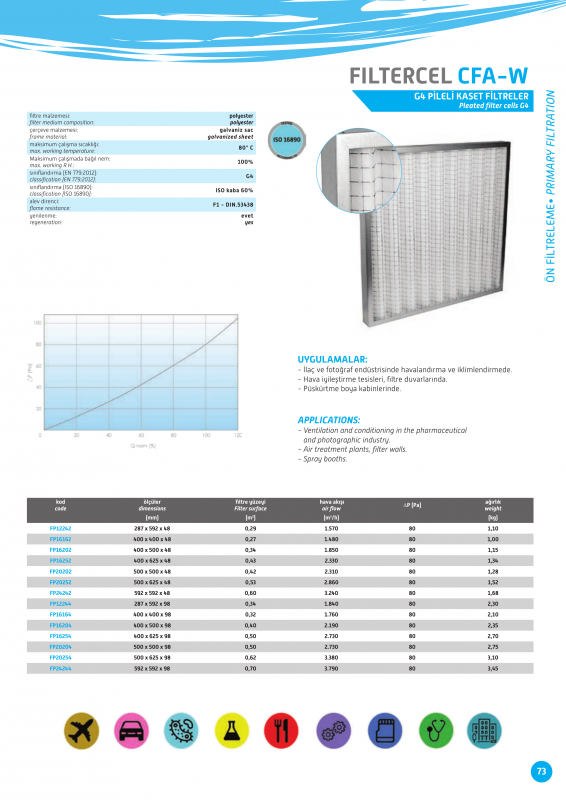

FILTERCEL CFA-W – G4 Pleated Filter G4 Pleated Filter | Primary Filtration | Pre-Filter Polyester Filter Media | Galvanized Sheet Frame EN 779:2012: G4 | ISO 16890: ISO Coarse 60% Max. Temperature: 80°C | Max. R.H.: 100% Regeneration: Yes | Flame Resistance: F1 – DIN 53438 Applications: HVAC | Pharmaceutical | Photographic Industry | Filter Walls | Spray Booths Dimensions: 287×592×48 – 592×592×98 mm Air Flow: 1,480–3,790 m³/h | Initial Pressure Drop: 80 Pa Codes: FP12242, FP16162, FP16202, FP16252, FP20202, FP20252, FP24242, FP12244, FP16164, FP16204, FP16254, FP20204, FP20254, FP24244

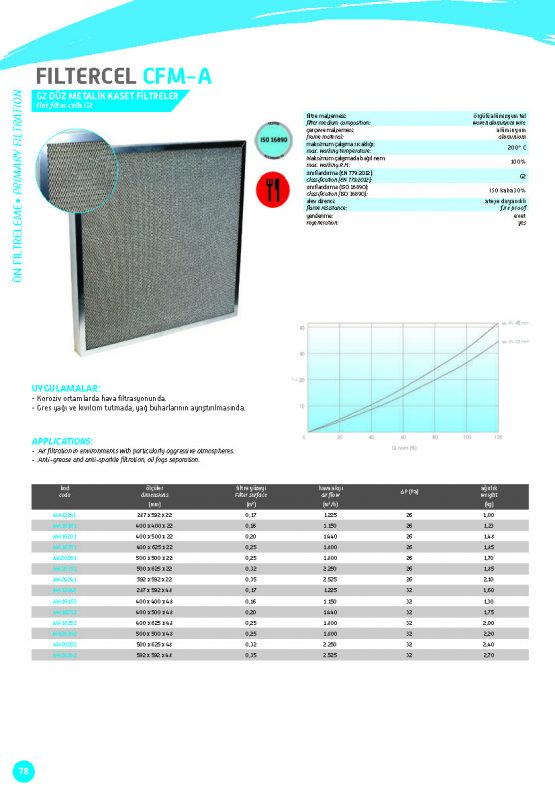

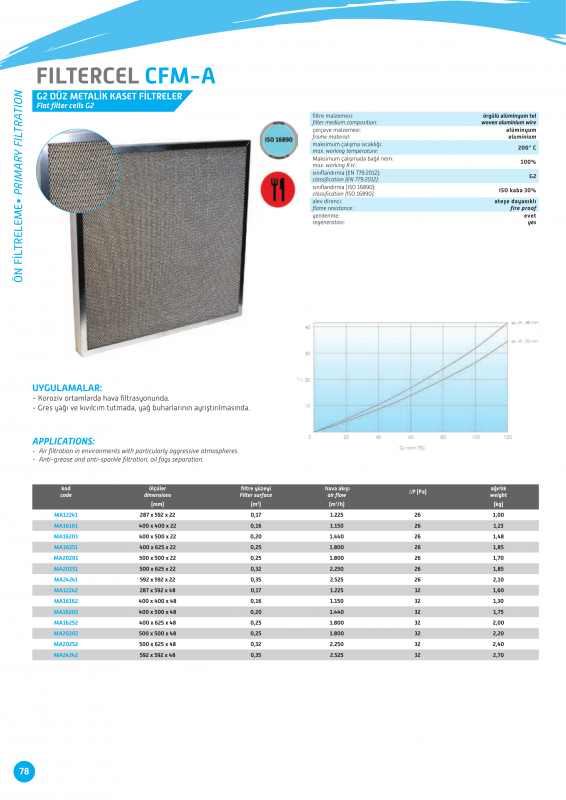

FILTERCEL CFM-A – G2 Flat Metal Filter G2 Flat Filter | Primary Filtration | Pre-Filter Woven Aluminium Wire | Aluminium Frame EN 779:2012: G2 | ISO 16890: ISO Coarse 30% Max. Temperature: 200°C | Max. R.H.: 100% Fireproof | Regeneration: Yes Anti-Grease | Anti-Spark | Oil Mist Separation Dimensions: 287×592×22 – 592×592×48 mm Air Flow: 1,150–2,525 m³/h | Initial Pressure Drop: 26–32 Pa Codes: MA12241, MA16161, MA16201, MA16251, MA20201, MA20251, MA24241, MA12242, MA16162, MA16202, MA16252, MA20202, MA20252, MA24242

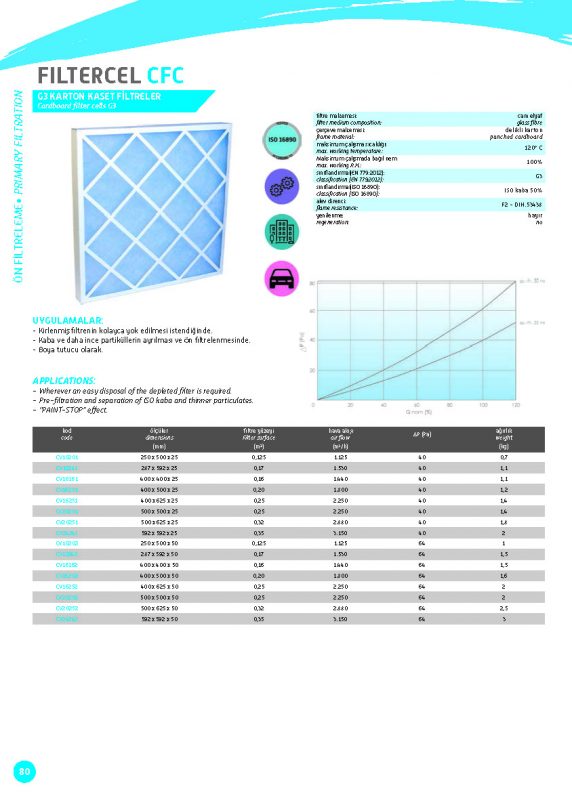

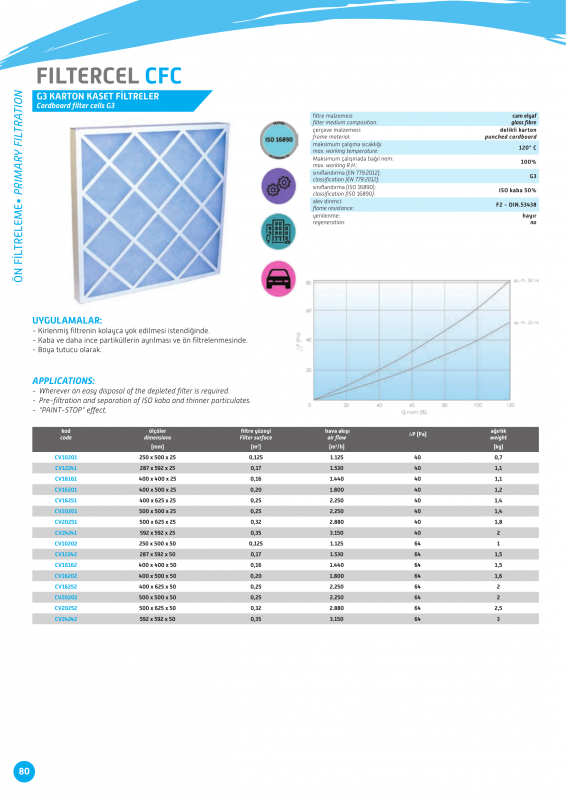

FILTERCEL CFC – G3 Cardboard Filter Cell G3 Cardboard Cassette Filter | Primary Filtration | Pre-Filter Glass Fiber Media | Punched Cardboard Frame EN 779:2012: G3 | ISO 16890: ISO Coarse 50% Max. Temperature: 120°C | Max. R.H.: 100% Flame Resistance: F2 – DIN 53438 | Regeneration: No Paint-Stop Effect | Disposable Filter Dimensions: 250×500×25 – 592×592×50 mm Air Flow: 1,125–3,150 m³/h | Initial Pressure Drop: 40–64 Pa Applications: Pre-Filtration | Paint-Stop | Coarse Particle Separation Codes: CV10201, CV12241, CV16161, CV16201, CV16251, CV20201, CV20251, CV24241, CV10202, CV12242, CV16162, CV16202, CV16252, CV20202, CV20252, CV24242

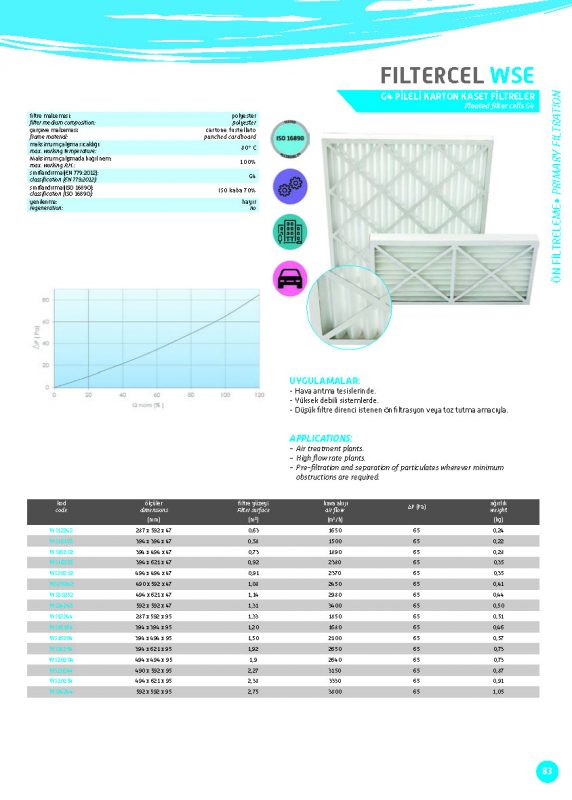

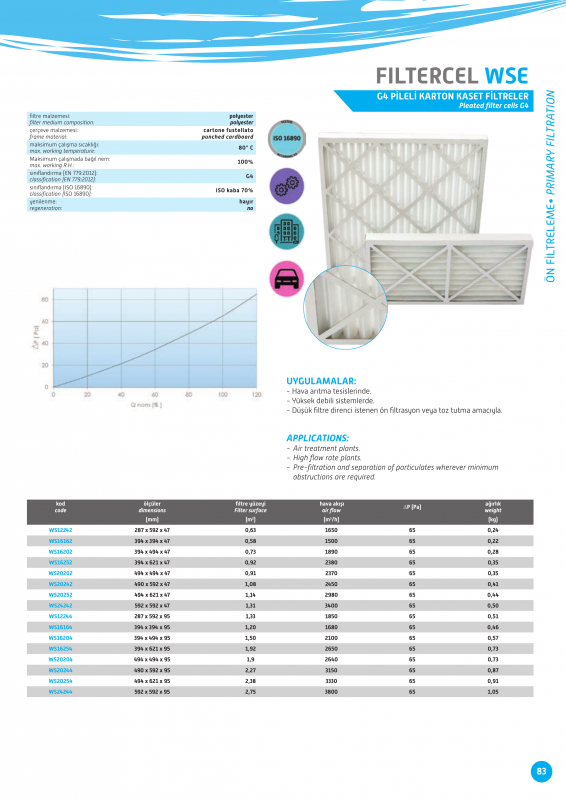

FILTERCEL WSE – G4 Pleated Cardboard Filter G4 Pleated Filter | Primary Filtration | Pre-Filter Polyester Filter Media | Punched Cardboard Frame EN 779:2012: G4 | ISO 16890: ISO Coarse 70% Max. Temperature: 80°C | Max. R.H.: 100% | Regeneration: No High Flow Rate | Low Airflow Resistance | Pre-Filtration Dimensions: 287×592×47 – 592×592×95 mm Air Flow: 1,500–3,800 m³/h | Initial Pressure Drop: 65 Pa Codes: WS12242, WS16162, WS16202, WS16252, WS20202, WS20242, WS20252, WS24242, WS12244, WS16164, WS16204, WS16254, WS20204, WS20244, WS20254, WS24244

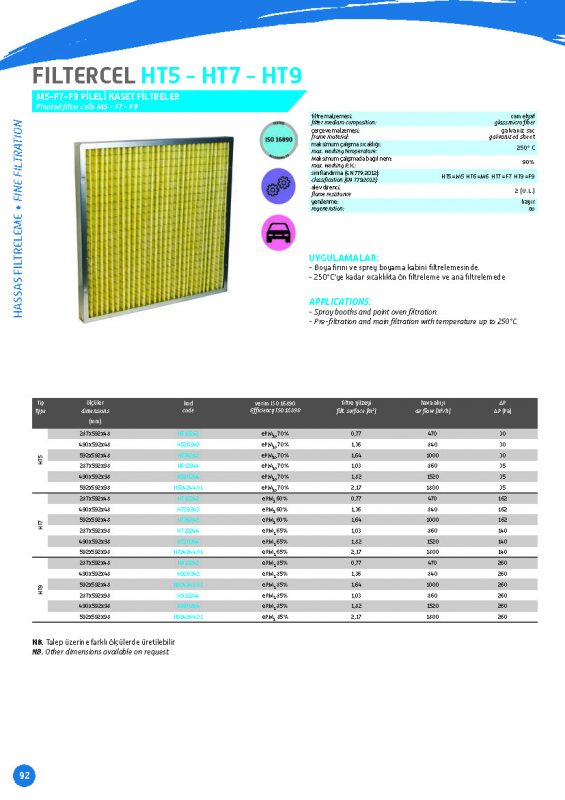

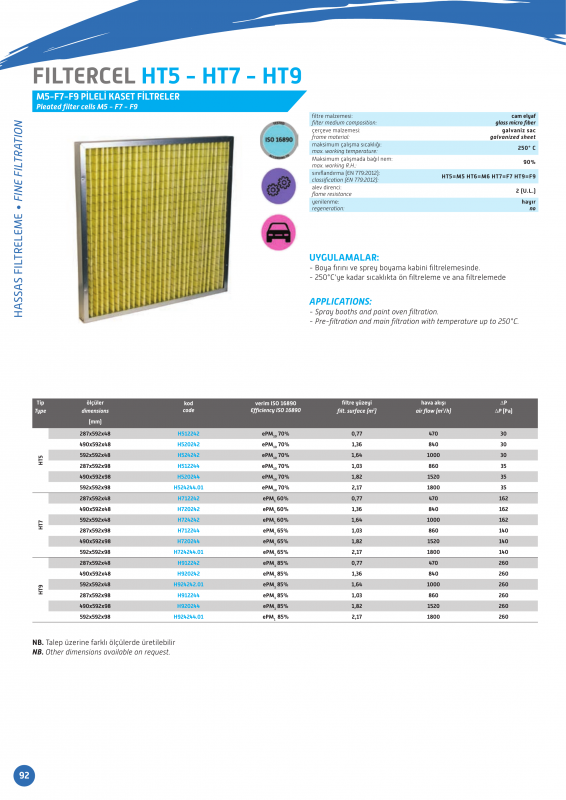

FILTERCEL HT5–HT7–HT9 – Fine Filtration M5 | M6 | F7 | F9 Pleated Filter Cells High Temperature Filter | Glass Micro Fiber | Galvanized Sheet Frame Max. Temperature: 250°C | Max. R.H.: 90% | Regeneration: No EN 779:2012: HT5=M5 | HT6=M6 | HT7=F7 | HT9=F9 ISO 16890: ePM10 70% | ePM1 60–85% Applications: Spray Booths | Paint Ovens | Pre-Filtration | Main Filtration Dimensions: 287×592×48 – 592×592×98 mm Air Flow: 470–1800 m³/h Codes: H512242, H520242, H524242, H512244, H520244, H524244.01, H712242, H720242, H724242, H712244, H720244, H724244.01, H912242, H920242, H924242.01, H912244, H920244, H924244.01
